Continuous Current 1000Arms
Bandwidth 20Hz~10kHz
Max voltage output 30Vpk
Load Impedance 1Ω or less
1. Summary

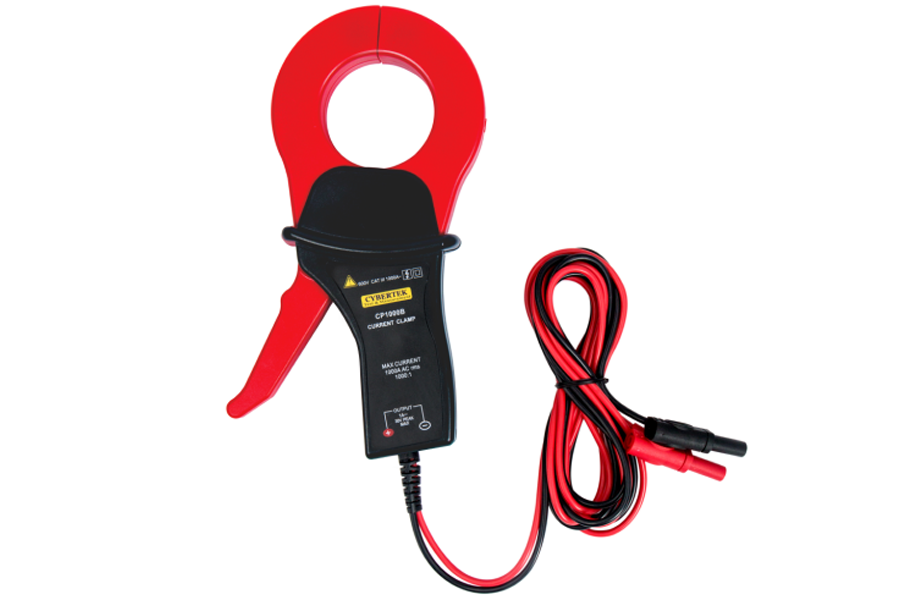

CP1000B current probe is used for alternating current testing. The current under test reaches effective value of 1000A, peak value of 2000A, bandwidth of 10 kHz. The current transfer ratio is 1000:1.Clamp diameter is around 54mm. With its banana plug or BNC output port, CP1000B can be connected to the oscilloscope of any brand, digital multi-meter or power analyzer. It can be widely used in the testing like motor drive, inverter, power switch and avionics.
1、Product Specification
| Continuous Current | 1000Arms | |
| Current Transfer Ratio | 1000:1 | |
| Bandwidth | 20Hz~10kHz | |
| Accuracy | 1mA...100mA | ≤3%+5uA |
| 0.1A...1A | ≤2%+3uA | |
| 1A...10A | ≤1% | |
| 10A...100A | ≤0.5% | |
| 100A...1000A | ≤0.3% | |
| Relationship between position and accuracy | 0.1%(Typical) | |
| Clamp diameter | 54mm | |
| Load Impedance | 1Ω or less | |
| Max voltage output | 30Vpk | |
| Output port | Banana plug or BNC port optional | |
| Output cable length | 2m | |
| Safety level | 600V CATIII | |
| Operating Temperature/ Humidity | -10℃~55℃,80% or less | |
| Storing Temperature/ Humidity | -40℃~70℃,80% or less | |
| Operating Altitude | 2000m | |
| Size (Length* Width* Height) | 216*115*45mm | |
| Weight | 710g | |
