1. Summary

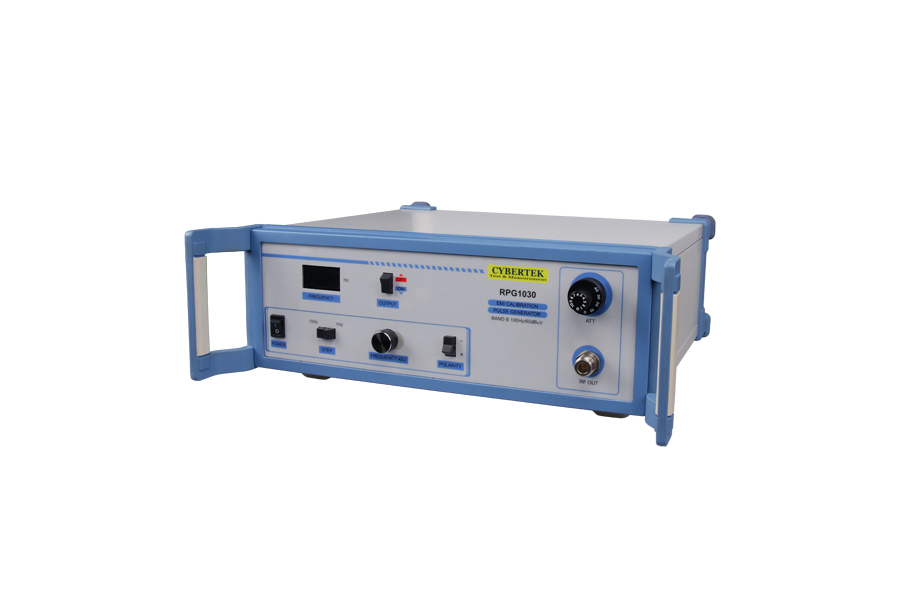

RPG1030 is the QP pulse Signal generator in accordance with CISPR16 standard, used for the calibration of the Quasi-peak value detector of EMI receiver B waveband. According the requirement of CISPR16-1 and GB6113, the EMI receiver should be able to calibrate both the accuracy of the constant amplitude RF signal and the response characteristics accuracy of the pulse signal. The QP detector of the EMI receiver is, unlike the normal spectrometer, specially designed for measuring interference signal.
RPG103 QP pulse signal generator can be used for the measuring of receiver pulse response by the receiver producer and metering organization.
1、Product specification
| Calibration Frequency Range | 150k-30MHz |
|
QP Output Value (attenuator zero) |
60dBuV （Pulse repeating frequency=100Hz） |
| Output Impedance | 50Ω |
| Pulse Repeating Frequency | 1Hz-200Hz optional |
| Pulse Frequency Accuracy | 100PPM |
| Pulse Voltage Amplitude | 26.3V/50 Ω load |
| Pulse Width | 6ns |
| Output Attenuator | 0-50dB |
| Operating Position | Vertical |
|
Operating Temperature and Humidity Requirement | 0°C to 40°C, 80%RH or less |
|
Storing Temperature and Humidity Requirement | –40°C to 60°C, 80% RH or less |
| Maximum Size | 43*41*15cm |
| Weight | 5.5kg |
