1. Introduction

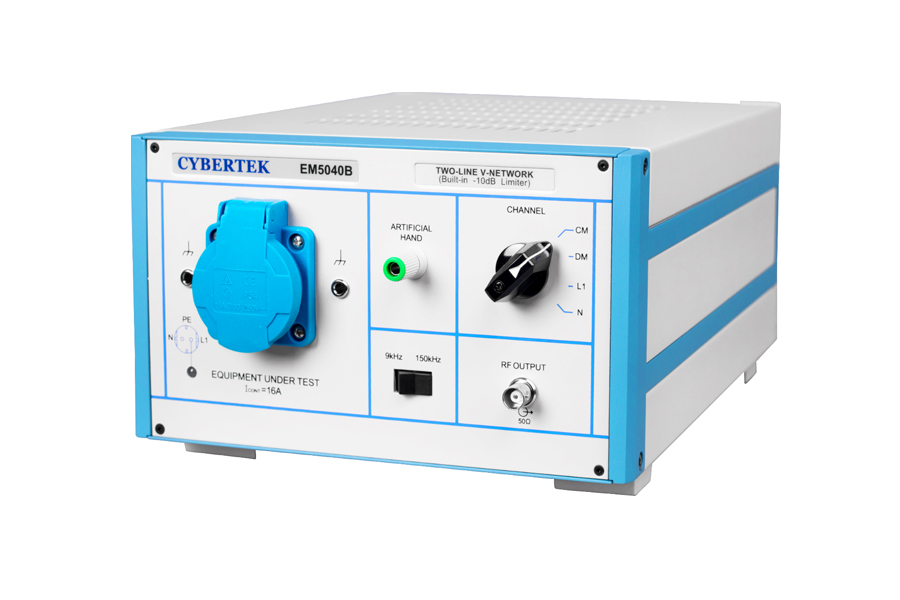

EM5040E/5040A/5040B Line Impedance Stabilization Network is a kind of （50uH+5Ω）||50Ω V type LISN. This product can provide stable impedance from 9 kHz to 30 MHz RF range for DUT and reference. At the same time, it isolated the useless signal from the electric network to measurement circuit and coupling the interference voltage of the DUT to the input connector of the measurement receiver. The product’s performance is compliant with standard requirements of CISPR16-1-2:2006 for V-networks. It suits conducted disturbance voltage measurement for single phase equipment well. The standard BNC output connector and 50Ω output impedance make the device compatible to the measurement equipment such as receiver and spectrum analyzer of any manufacturer. The artificial hand of the product can simulate the handle device to measure.
On the bases of EM5040A, EM5040B is added the function used for common mode and differential mode measurement, which will provide assistance for EMI debugging, especially for EMI filter.
1. Electronic Specifications
EM5040B | |
Frequency range | 9kHz—30MHz |
Circuit type | （50uH+5Ω）|| 50Ω Type V |
Measurement circuit phase number | Single phase two wire L/N1 |
AC voltage/ frequency range | 0～264VAC / 50～60Hz ±5% |
DC voltage range | 0～375V DC |
Power supply output connector | German standard power supply socket |
Output current | Rating 16A |
Ground protection | Side metal panel grounding Rear panel 4mm butterfly bolt grounding |
Output connector | Standard 50Ω BNC female， |
Artificial hand | Yes |
Output signal filter | High-pass filter 9kHz/150kHz optional |
Output signal limiter | Attenuation coeffcient-10dB limit threshold 130dBuV |
Output signal common mode and differential mode separator | Yes Add 2 output connector CM/DM |
Operating temperature range | 0℃～45℃ |
Storing temperature | -20℃～70℃ |
Safety standard | EN61010-1 |
Size | 338mm（Length）×237mm(Width)×133mm（Height） |
Weight | 5.25kg |
