Frequency range 9kHz—30MHz
DC voltage range 0～375V DC
1. Summary

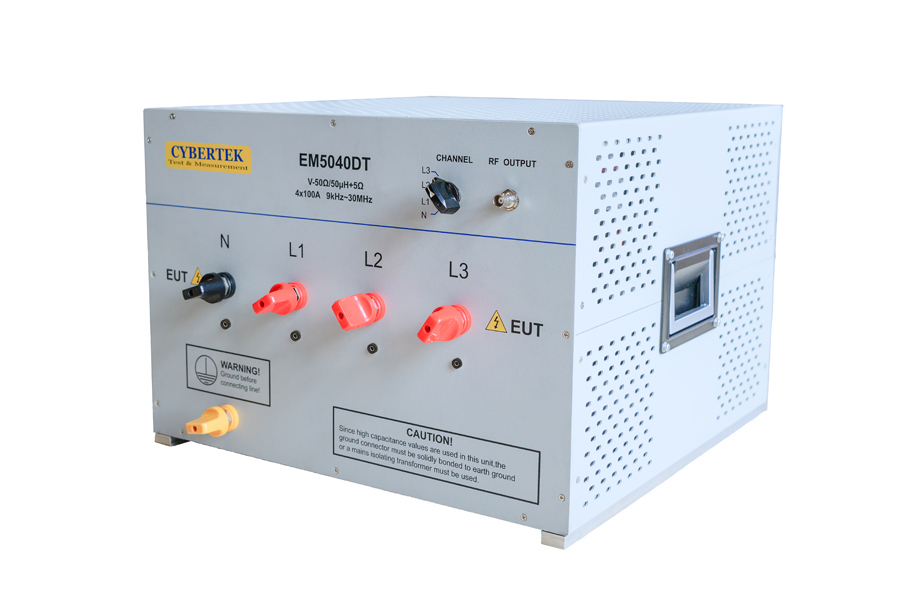

EM5040DT is a kind of (50uH+5Ω) ||50Ω Type V Three Phase LISN (Line Impedance Stable Network). This product can provide stable impedance between EUT and reference ground in the RF range of 9kHz-30MHz and insulated the circuit under test from the useless signal from the electric network, coupling only the disturbance voltage of the EUT to the input connector of the Test Receiver. EM5040DT’s performance is in accordance with the CISPR16-1-2: 2006 Standard and can be used for measuring conducted disturbance voltage of three-phase equipment. EM5040DT has standard BNC output connector and 50Ω output impedance, and it can match the equipment such as Test Receiver or Spectrum Analyzer of any brand.
1. Electrical Specification
Frequency range | 9kHz—30MHz |
Simulated impedance | (50uH+5Ω) ||50Ω Type V |
Test line and phase number | Three phases four lines (L1/L2/L3/N) |
Phase voltage/frequency range | 0～240VAC / 50～60Hz ±5% |
DC voltage range | 0～375V DC |
Power supply input/output connector | 10mm bolt |
Output current | Rated 100A(In environment with good ventilation and convention) |
Grounding protection | Bottom metal plate grounding Front/back panel 10mm bolt grounding |
Output connector | Standard 50Ω BNC female， |
Operating temperature range | 0℃～45℃ |
Storage temperature | -20℃～70℃ |
Safety standard | In accordance with EN61010-1 |
Dimensions(L*W*H) | 446mm×446mm×319mm |
Weight | 29kg |
